商品詳情

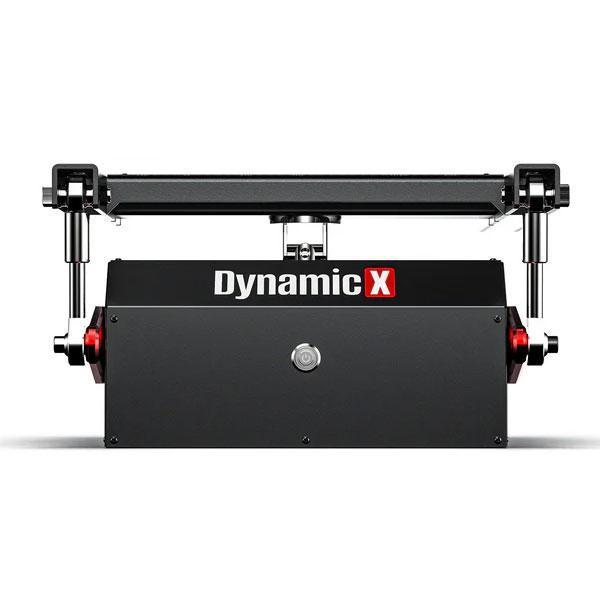

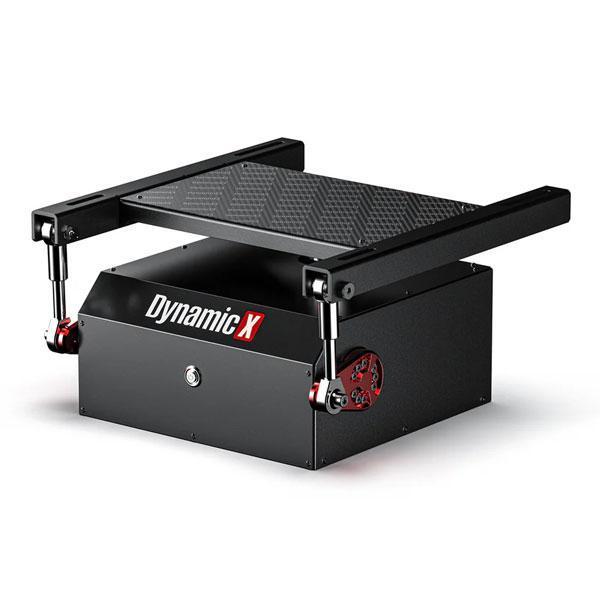

DYNAMIC X / 雙軸 動態 模擬器 / DX2 ULTRA / PC GT7 賽車 飛行
台灣公司貨
＊ 商品不含賽車架、方向盤、踏板、排檔變速器、電視架等其他設備，需另購 ＊
商品特色：
準直接驅動的真實力量與家用設計相結合，帶來毫不妥協的多模擬器沉浸式體驗。
DX Winner 2 是一款超緊湊、安靜的 2DOF 家用運動模擬器，可提供直驅級瞬態 G 力反饋——功率為 200 瓦，峰值扭矩高達 120 牛頓米，綜合峰值 G 力為 0.73 G——適用於模擬賽車、卡車模擬、飛行和 VR。

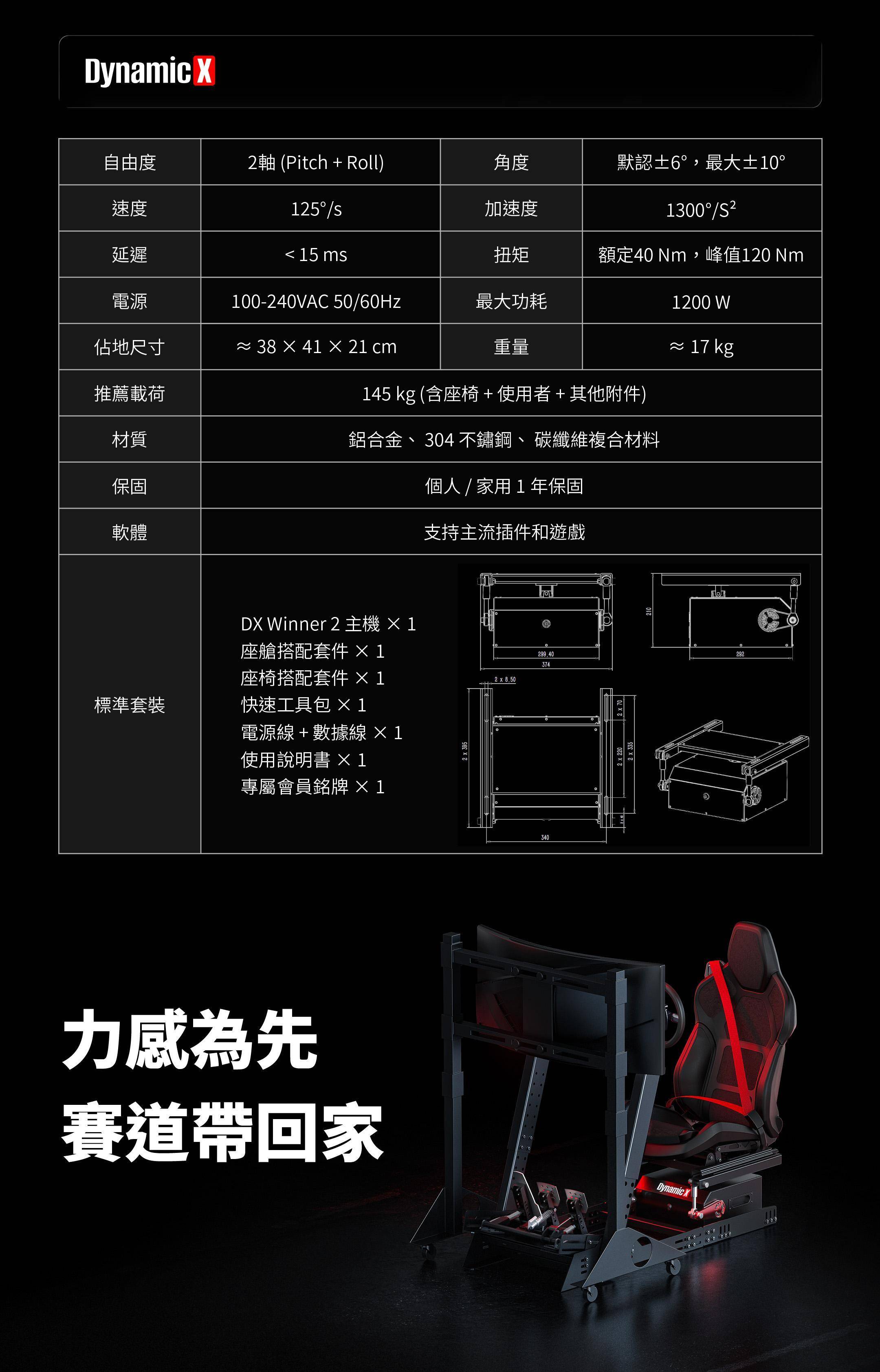

商品規格：
- Motion & Performance
Degrees of Freedom: 2 DOF (Pitch + Roll)
Motion Range (Pitch/Roll): ±6° (Standard) / ±10° (Custom Firmware)
Max Angular Speed: 125°/s
Max Angular Acceleration: 1300°/s²
Max System Latency: 15 ms
- Load
Recommended Load: 145 kg (seat + user + accessories) - Motor & Drivetrain

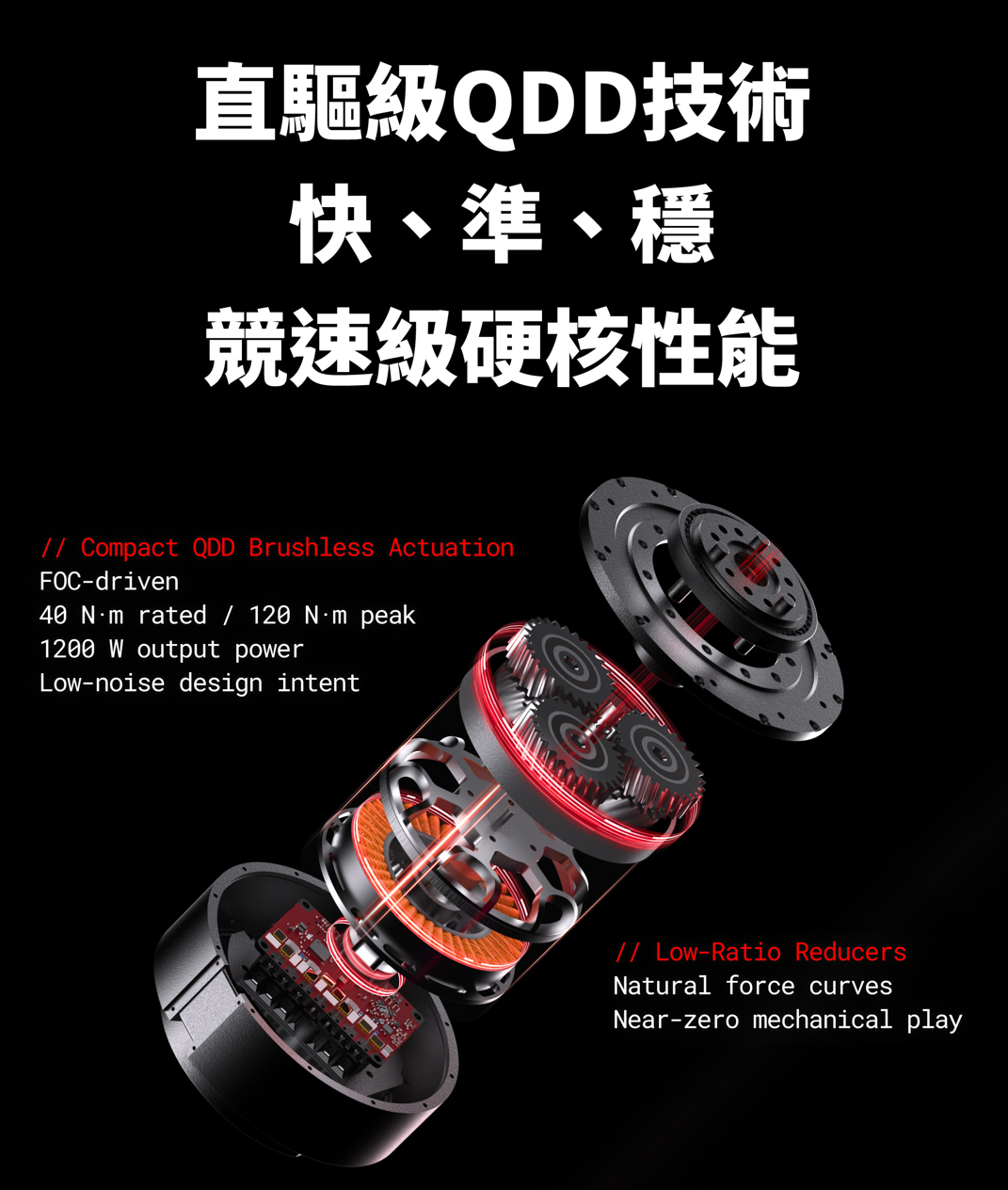

Motor Max Angle: ±20.1°
Transmission Ratio: 3.35:1
Rated (Continuous) Torque: 40 Nm
Peak Torque: 120 Nm - Electrical
Power Supply: 100–240 VAC, 50/60 Hz
Maximum Power Consumption: 1200 W
- Simulated G-Force (Equivalent Acceleration)
Angular Acceleration Component: 1.15 G (≈ 11.3 m/s²) - Dimensions & Weight
Footprint: ≈ 38 × 41 × 21 cm
Weight: ≈ 17 kg / 37 lb - Materials & Warranty
Materials: Aluminum, 304 Stainless Steel, Carbon Fiber Composite
Warranty: Full 1-year warranty (personal/home use)
商品內容物：
-
1 × DX Winner 2 Motion Platform
-
1 × Cockpit Adapter Kit
-
1 × Seat Adapter Kit
-
1 × Tool Kit
-
1 × Power Cable + Data Cable
-
1 × User Manual Card
-
1 × Membership Plaque
